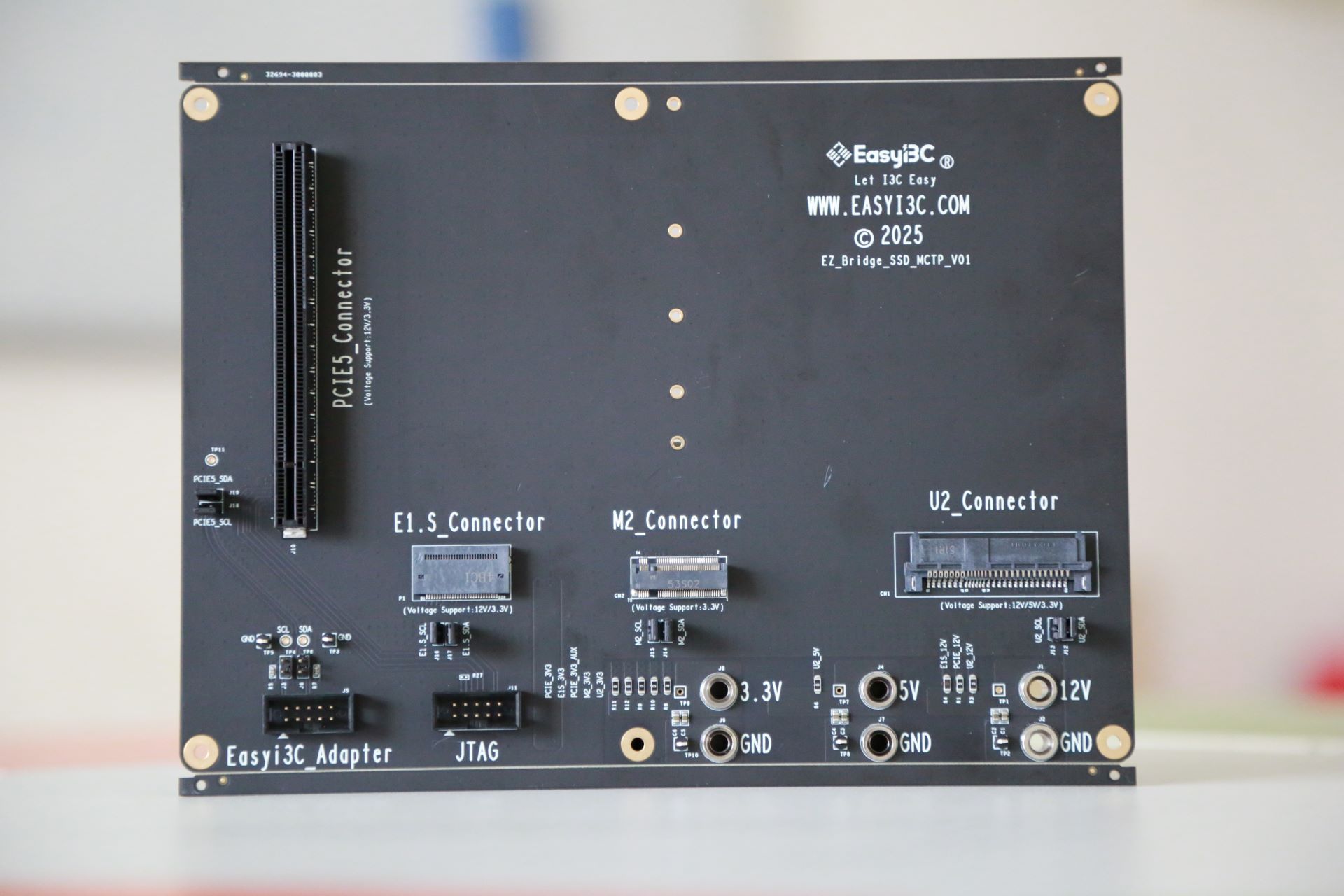

Bridge I3C SSD MCTP Board

Notes: This price is only for samples. The price of the sample is FOB. The shipping fee is $200. Each customer can purchase a maximum of 2 units. For further inquiries, please contact us.

Product Overview

This board provides engineers with a simple and economical way to debug the I3C/I2C(SMBUS) interface function of various SSD hard drives. Various interface forms of hard drives can be plugged into this board, and then power can be supplied to the hard drives through this board. The I3C/I2C(SMBUS) interface of the hard drives is also connected by the connectors on the board. We can easily debug the SSD I3C/I2C(SMBUS) interface through our Easyi3C device.

This board supports the following forms of SSD hard drives: E1.S, U2, M2 and PCIE.

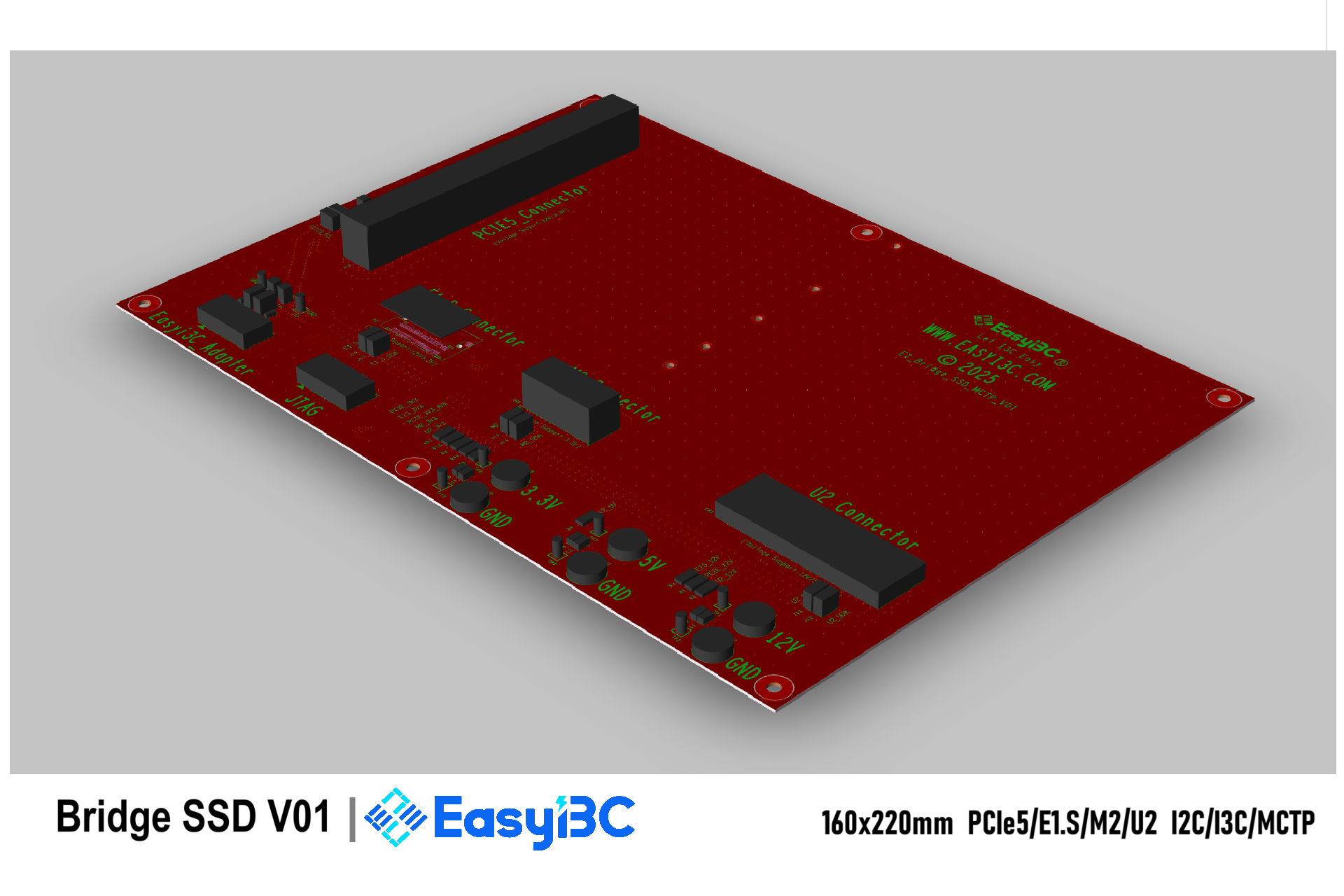

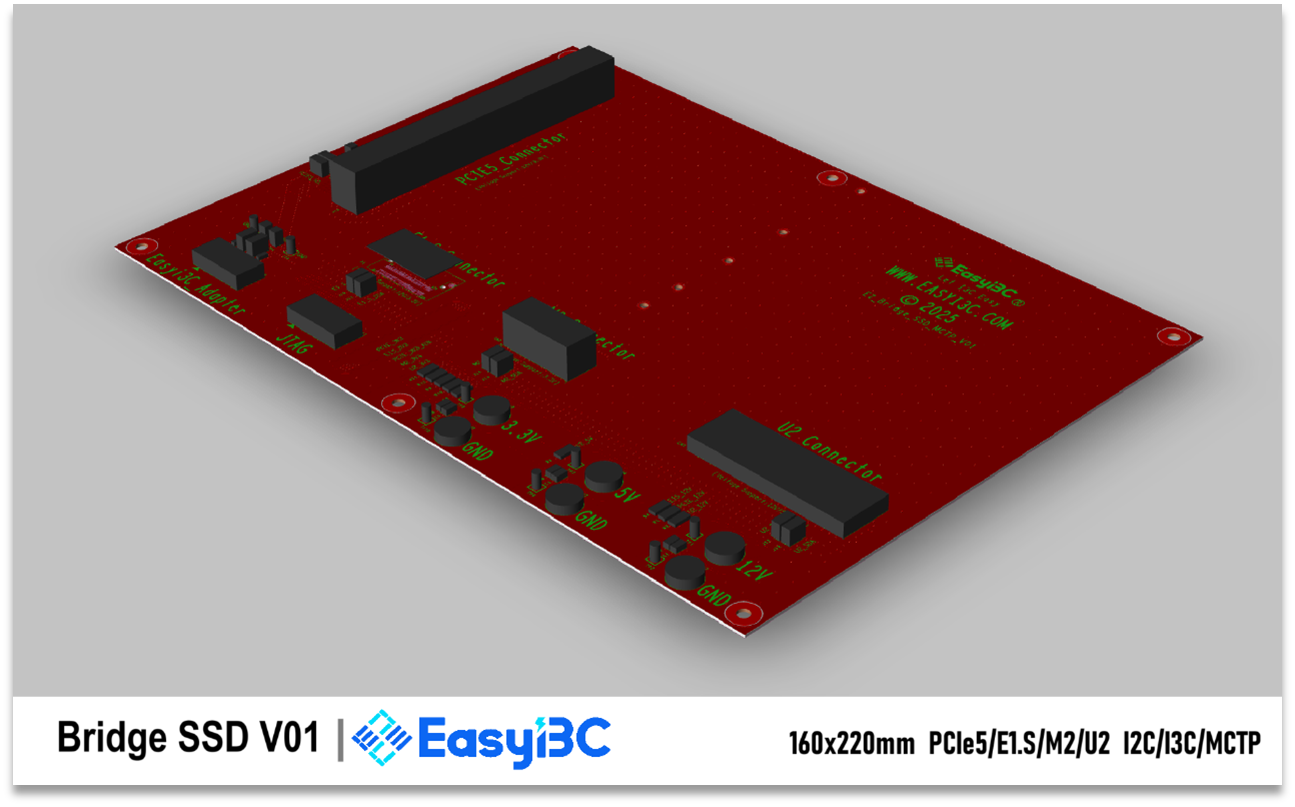

Overview:

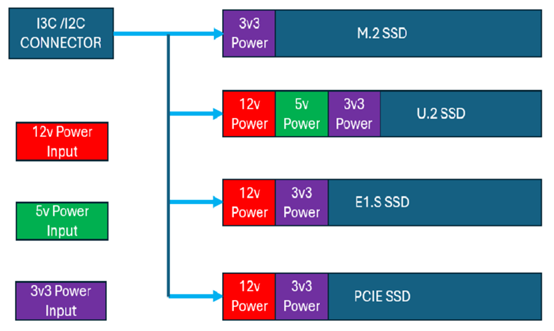

Principle Structure Diagram

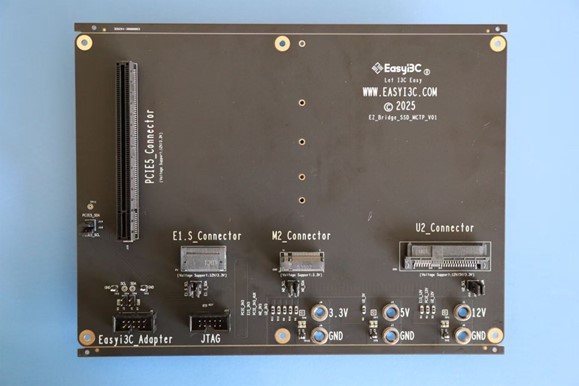

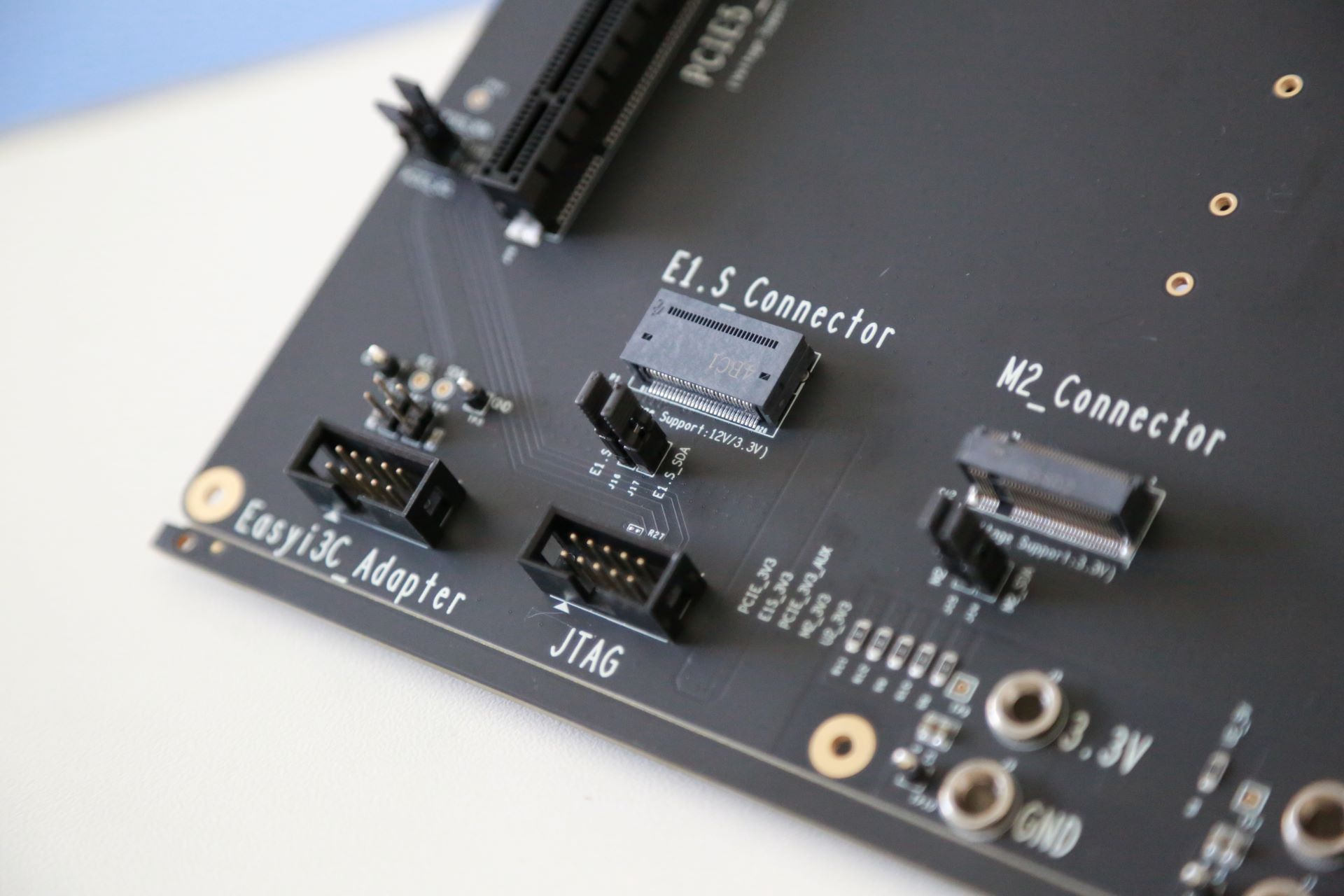

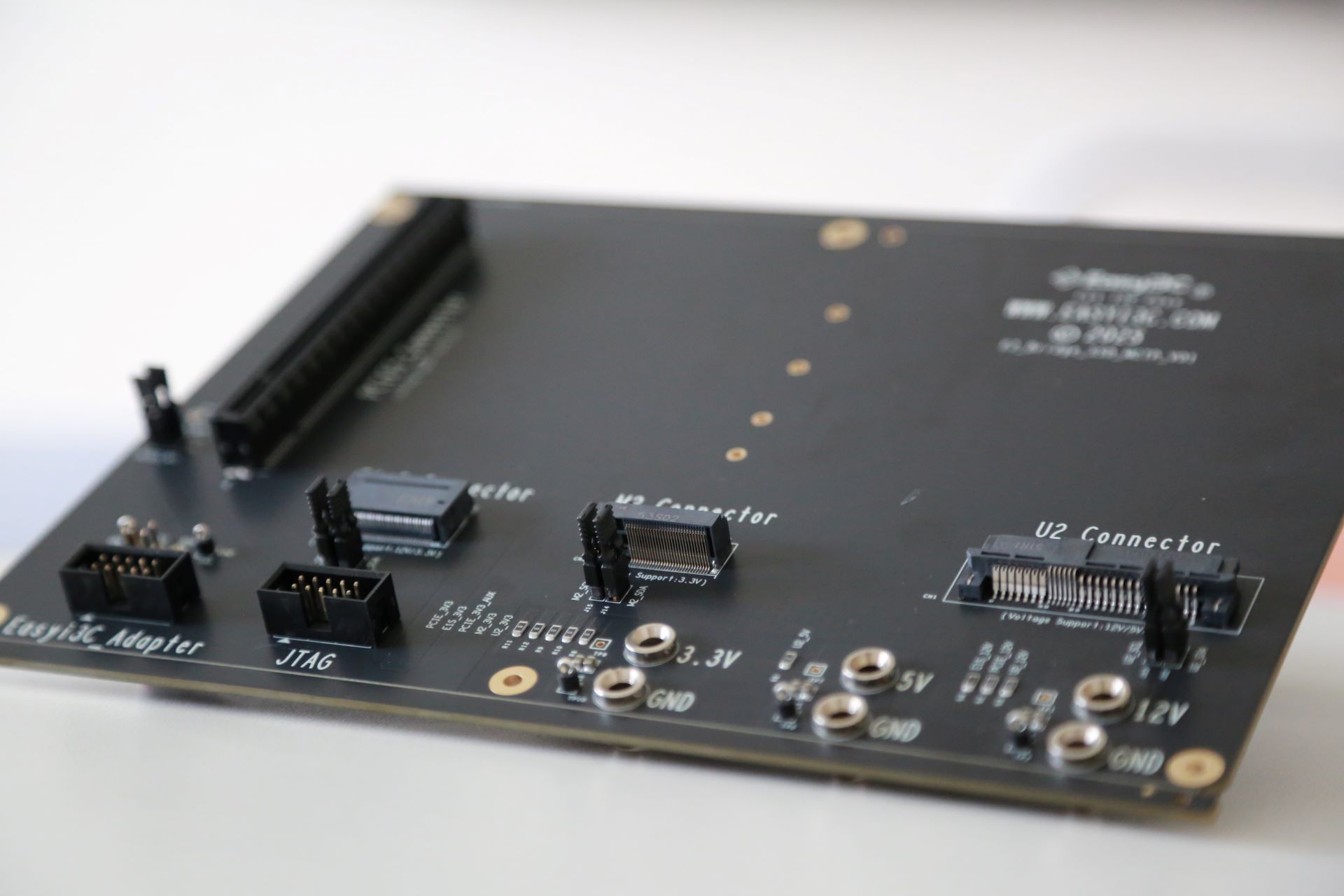

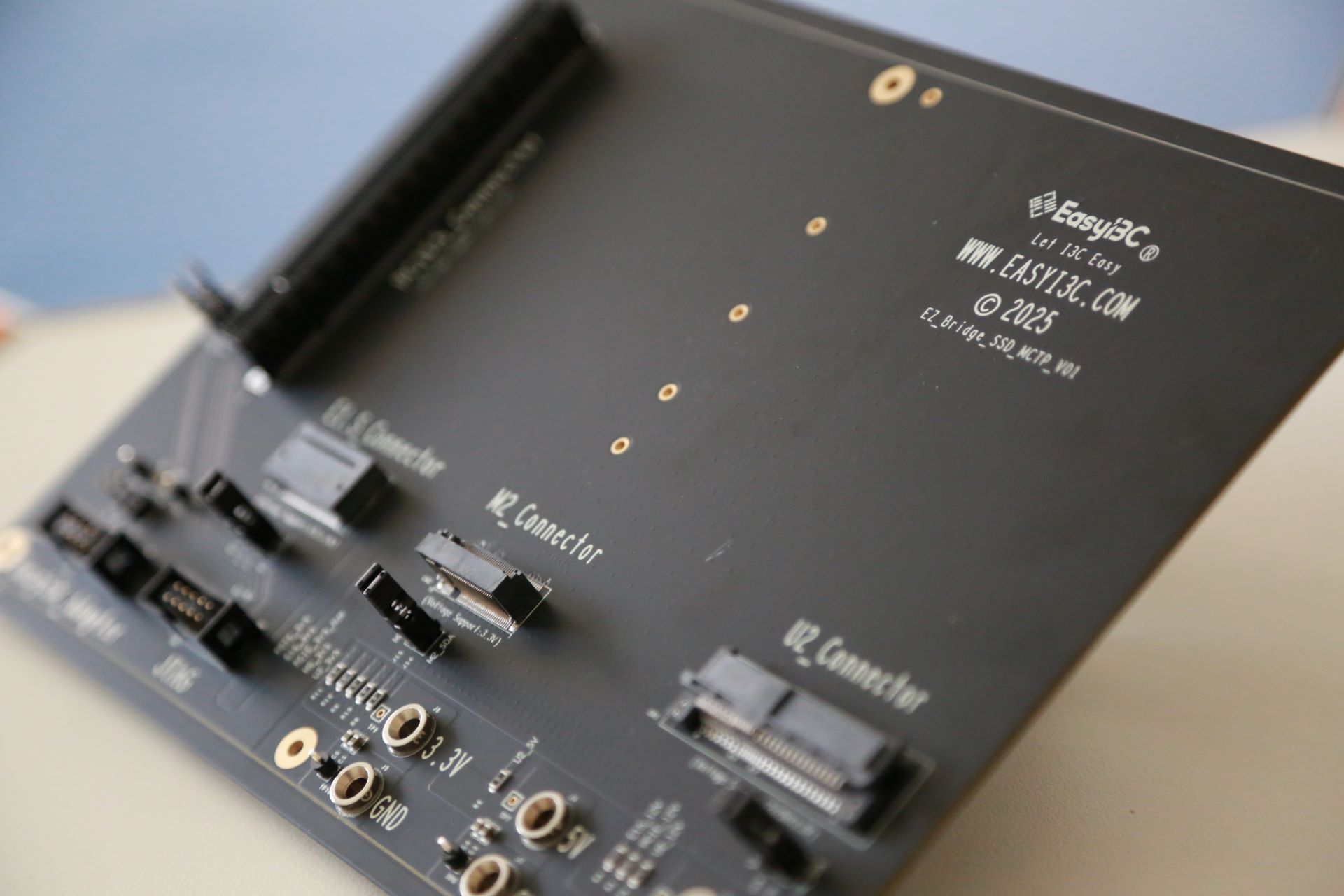

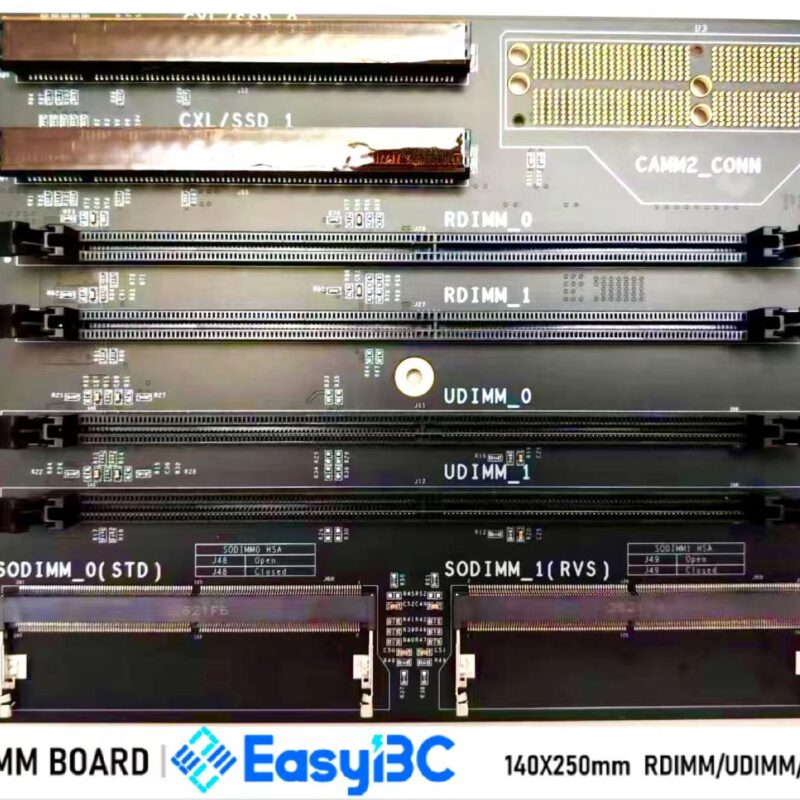

PCB Board display:
