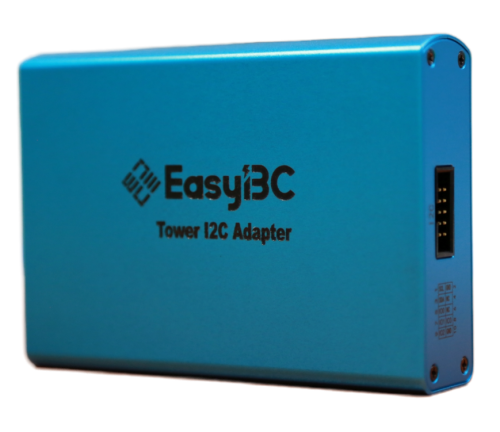

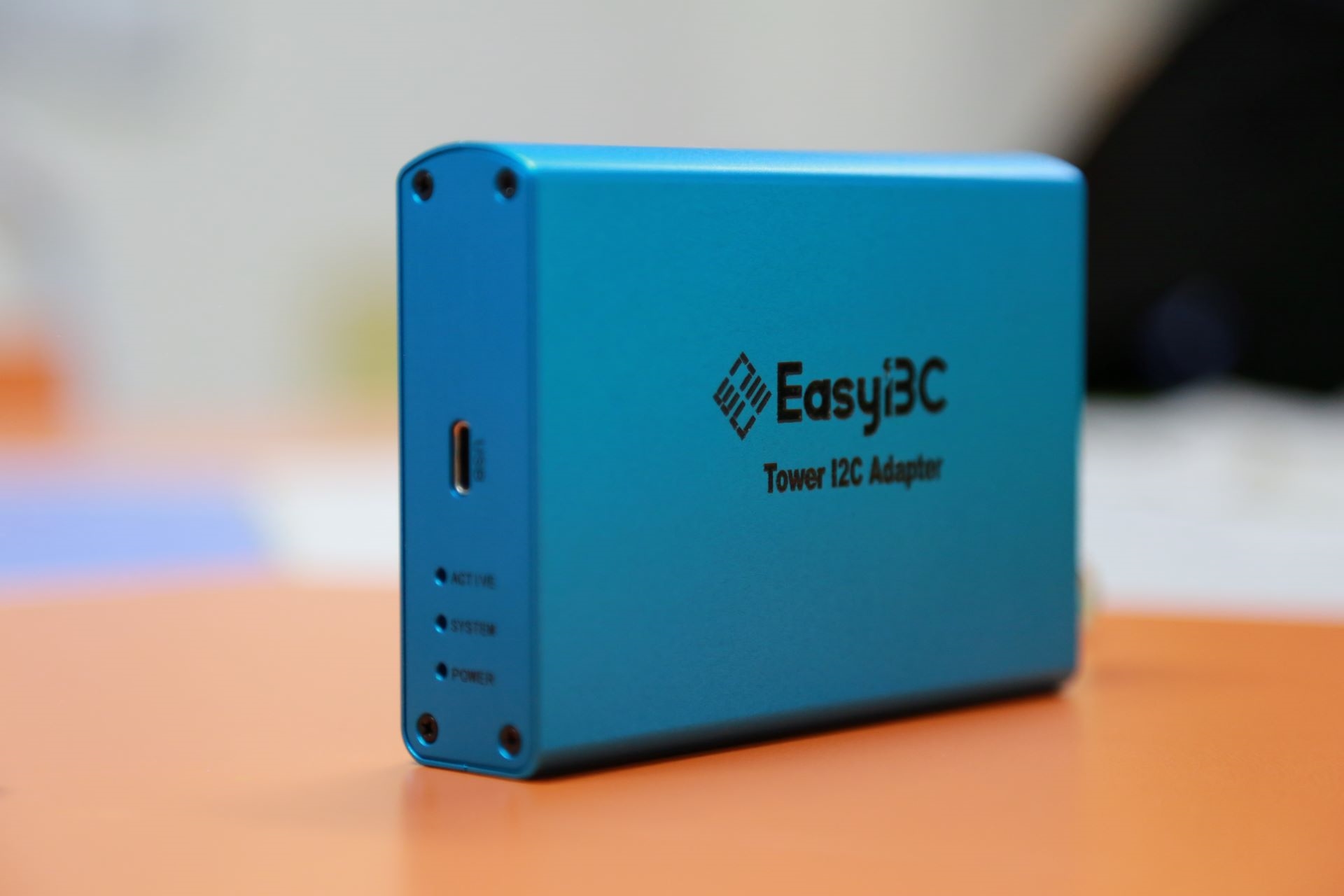

Tower I2C Host Adapter



---

Notes: This price is only for samples. The price of the sample is FOB. The shipping fee is $200. Each customer can purchase a maximum of 2 units. For further inquiries, please contact us.

---

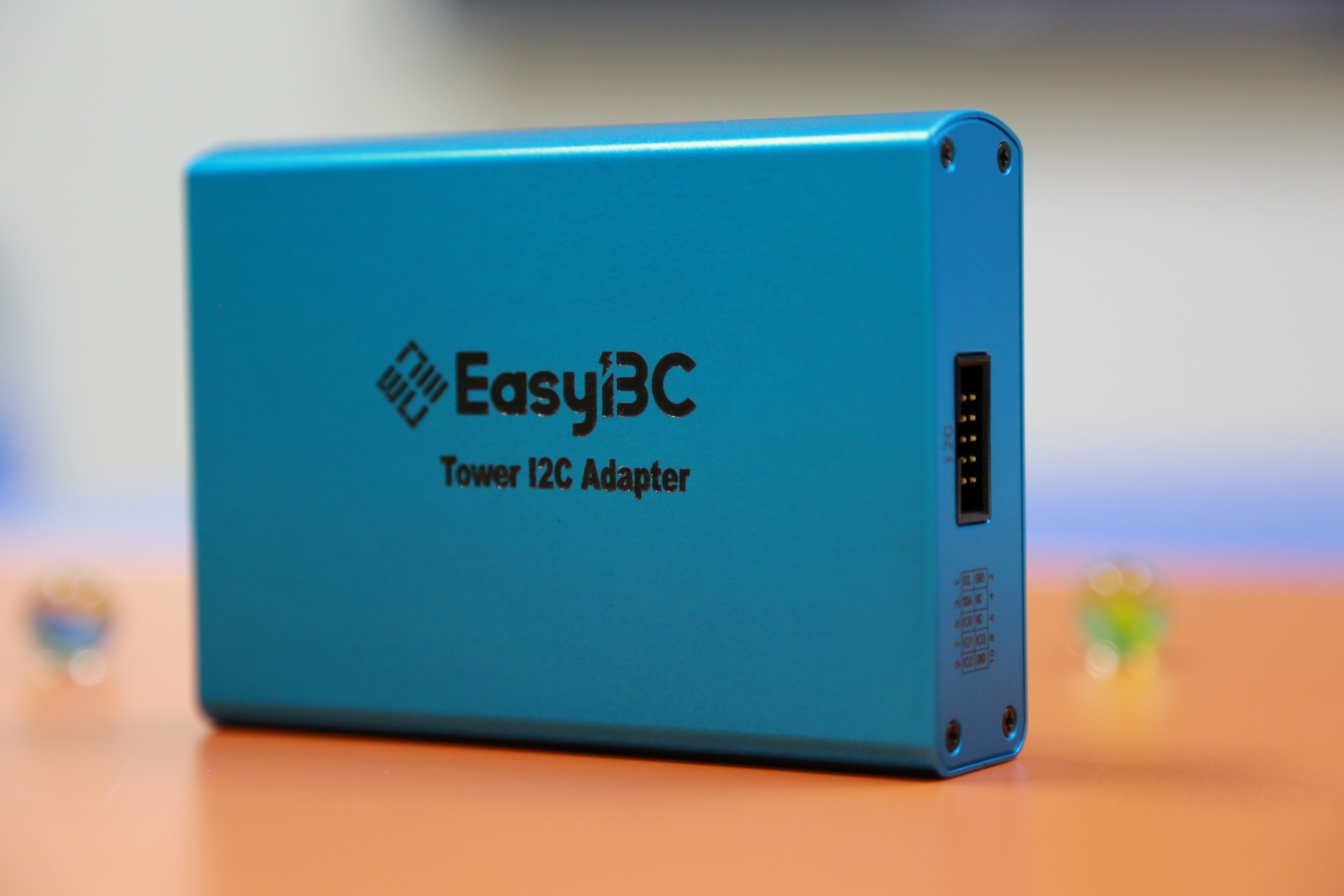

Easyi3C Tower I2C Host Adapter is a powerful and easy-to-use I2C host adapter. It connects the computer to the downstream embedded system environment through USB interface and adopts advanced I2C protocol.

Based on API functions and Easyi3C Tower Console GUI tools, combined with Python development environments, Tower Host Adapter greatly simplifies the development process of I2C chip testing and data transfer environments.

All software is free.

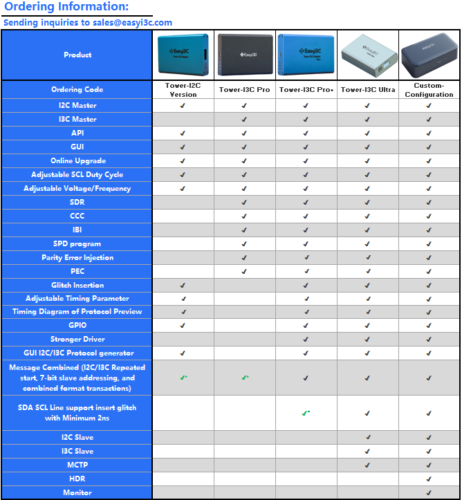

Key Features

• Support I2C Master
• Software configurable I2C pull-up
• Variable SCL Frequencies: 1 kHz to 4 MHz (Default: 1MHz)
• Adjustable SCL Duty Cycle
• Supports I2C timing parameter test
• Supports I2C filter test
• Amplitude Variation: 0.8V to 3.3V.  0.8V-1.675V (in steps of 5mV), 1.675V-3.3V (in steps of 10mV)
• 5ns resolution
• Supports 7-Bit Slave Addressing
• 4 configurable GPIOs
• USB Type-C port, Max. Current & Voltage: 500 mA @ 5 V
• Supports online upgrade
• API support for automation test in Python
• Physical Size: 114mm x 82mm x 27mm
• Operating Temperature: room temperature

GUI Tool Overview

Easyi3C Tower Console GUI Tool is a graphical software debugging tool specifically designed to connect users and Easyi3C tower host adapter. It provides users with universal I2C read and write operations. Greatly facilitates users’ I2C protocol data transmission and read/write access to chip registers. Inside the red circle below are some default settings for time parameters. Enter the device address, register address, and data in sequence in the red box below, and then click “Write” button in the green box below. Tower I2C host will perform write operation.

Easyi3C Tower Console GUI Tool

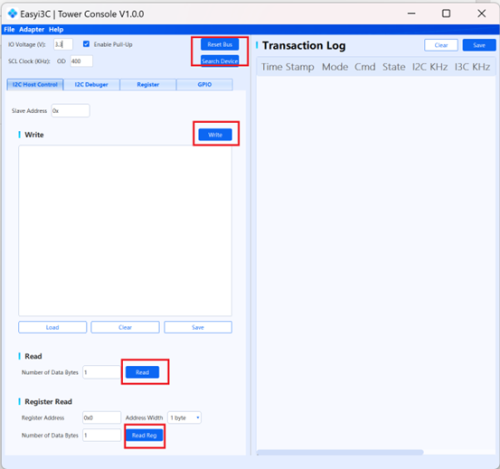

I2C write/read

Inside the red circle below are some default settings for time parameters. Enter the device address, register address, and data in sequence in the red box below, and then click “Write” button in the green box below. Tower I2C host will perform write operation.

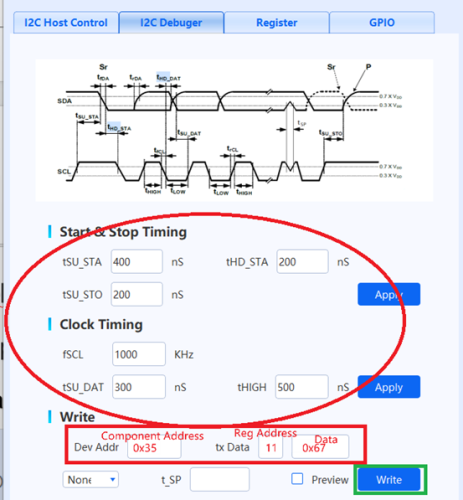

I2C timing Test

Inside the red circle below are some default settings for time parameters. Enter the device address, register address, and data in sequence in the red box below, and then click “Write” button in the green box below. Tower I2C host will perform write operation.

If you change the timing parameter, input the timing parameter you wanted and click the “Apply” button, and the  sequence in the red box below, and then click “Write” button in the green box below. Tower I2C host will perform write operation according to new setting.

If you choose “Preview” item, you can preview waveform.

I2C Filter Test

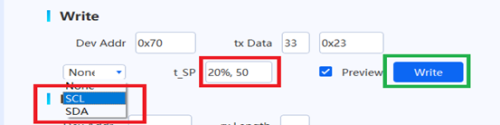

Firstly, As shown in the following figure, choose to add glitch to SDA or SCL.

Then choose where to insert the spike (the location of 7-bit address phase, for example 20%), And then input the width of spike(50ns). At last, click the “Write” button. The waveform with 50ns spike will send out. Determine whether the filter has filtered out spike by observing whether the device has an ACK or NACK.

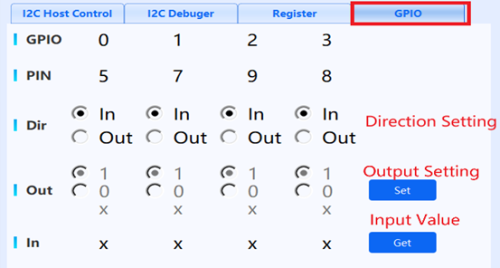

GPIO

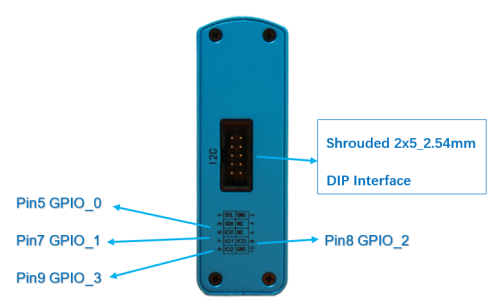

Tower I2C host adapter has 4 GPIOs, the user can use if freely. It is 3.3V voltage.



Tower Host Adapter Interface

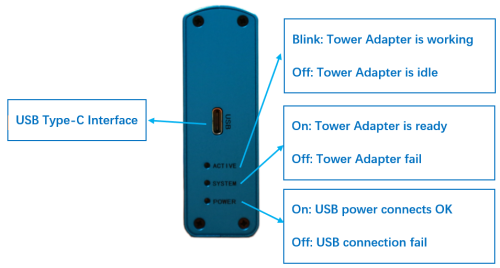

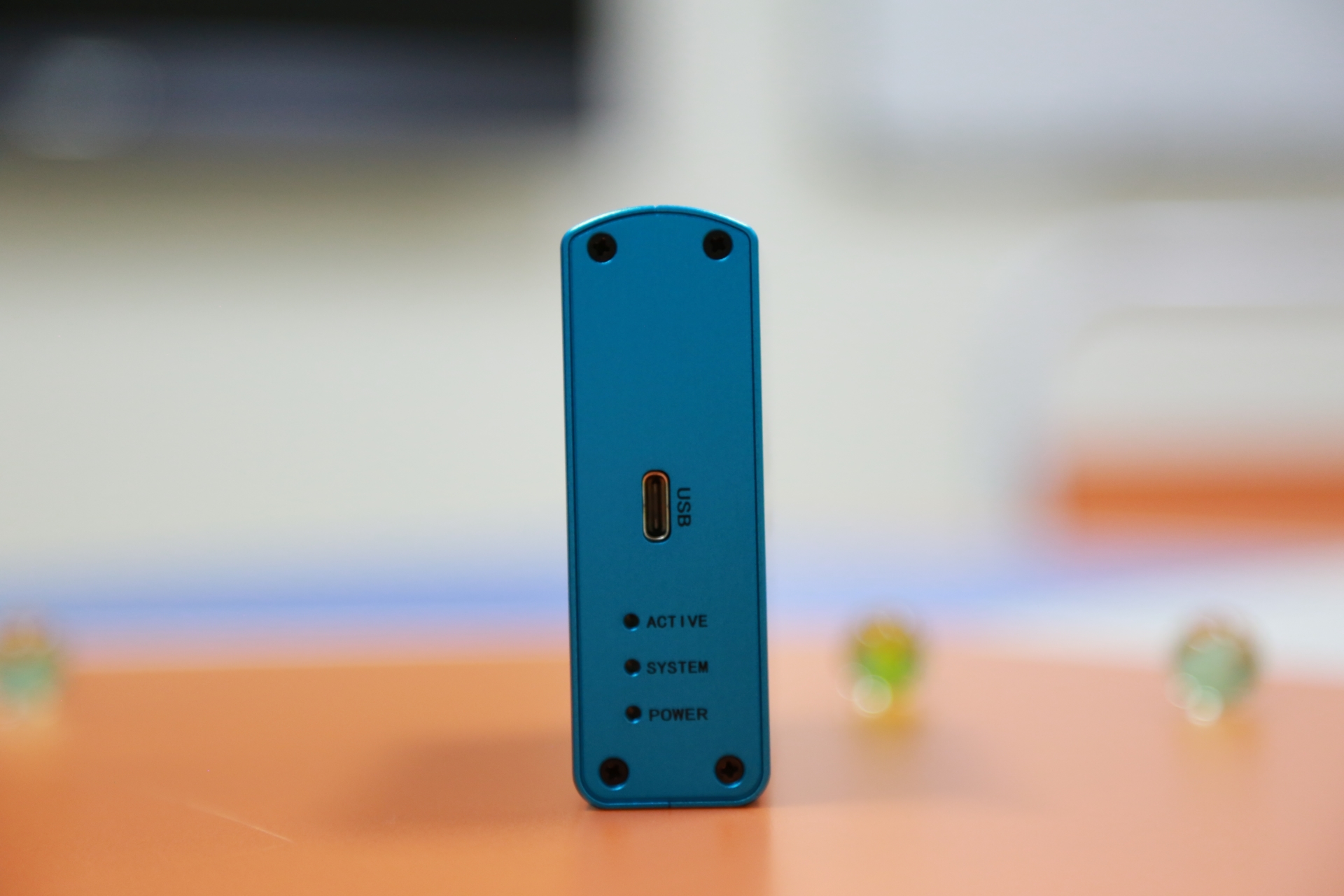

Front Panel

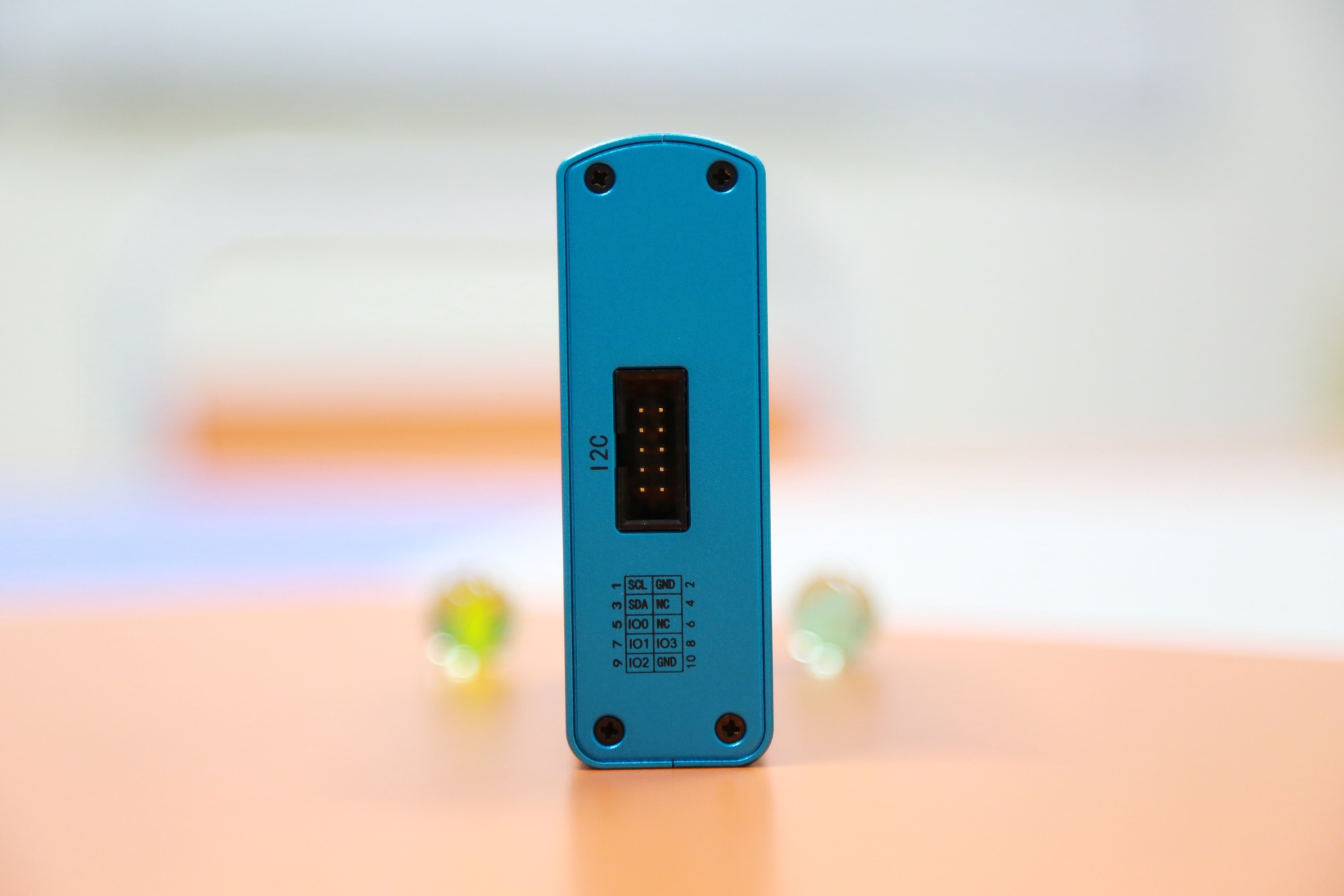

Back Panel

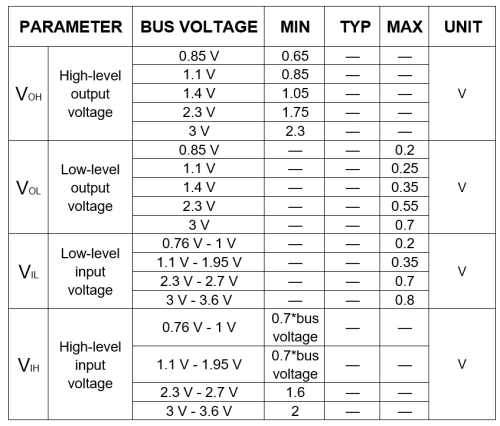

Electrical Characteristics

Packing List

1. Tower Host Adapter

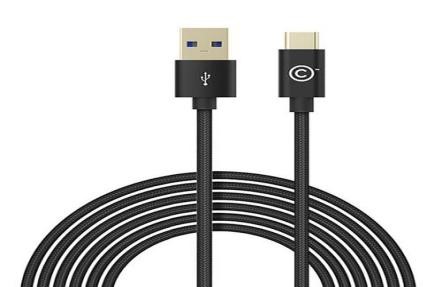

2. USB A TO USB Type-C Cable (100cm)

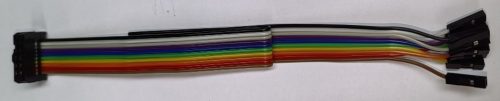

3. 2×5 Pin 2.54mm Pitch Flat Ribbon Cable (15cm)

4. 2×5 Pin 2.54mm Pitch Flat Ribbon Cable
