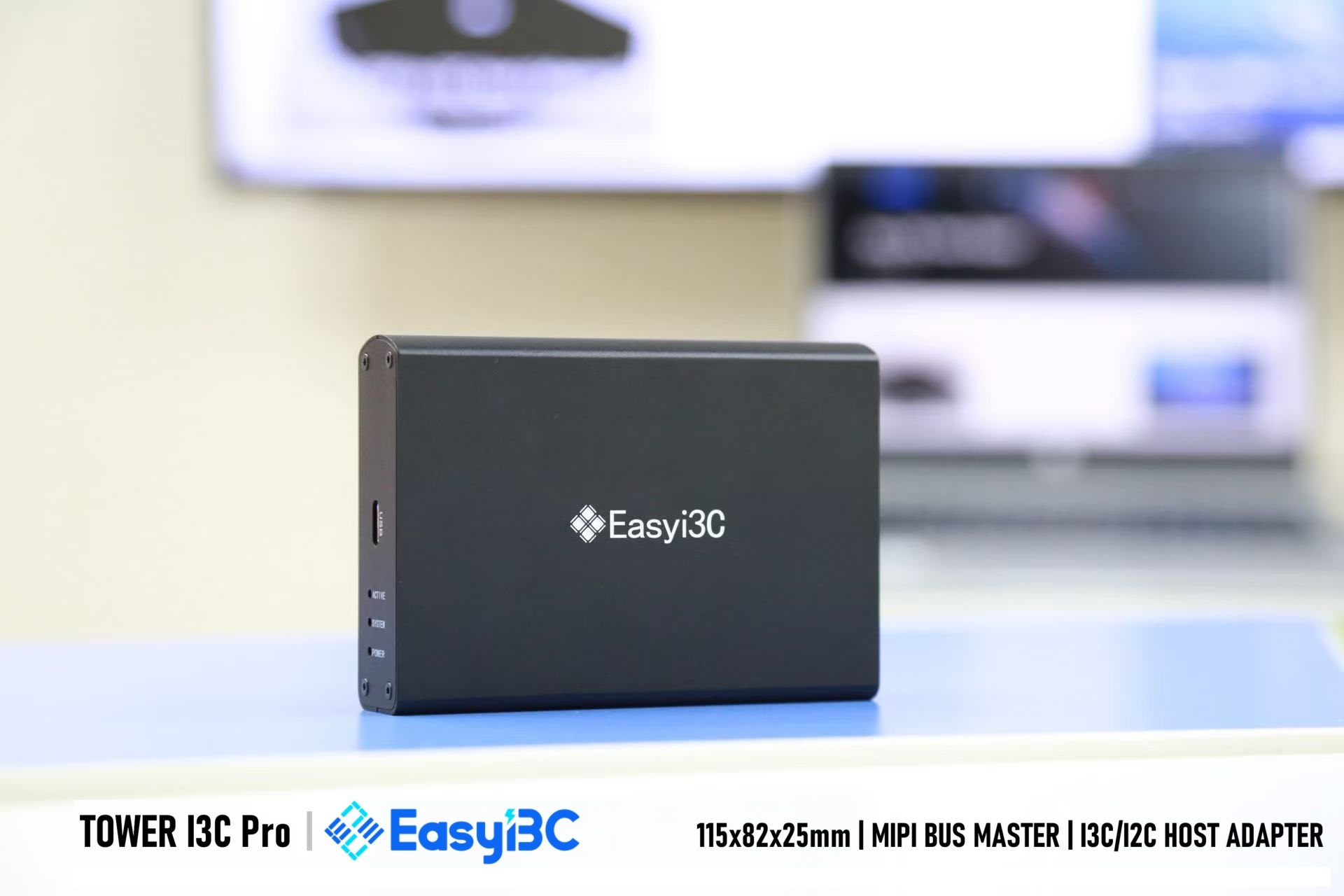

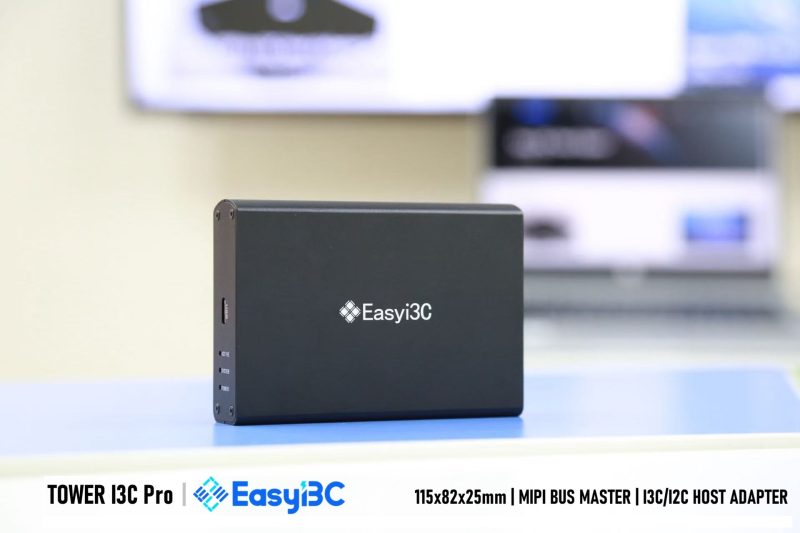

Tower I3C Host Adapter Pro

Easyi3C Tower Host Adapter (Pro) is a powerful and easy-to-use I3C/I2C host adapter. It connects the computer to the downstream embedded system environment through USB interface and adopts advanced I3C/I2C protocol.

Based on API functions and Easyi3C Tower Console GUI tools, combined with Python development environments, Tower Host Adapter greatly simplifies the development process of I3C/I2C chip testing and data transfer environments.

Key Features

• Supports MIPI I3C BASIC v1.1
• JEDEC JESD403-1 Specifications (JEDEC DDR5 Sideband Bus Spec)
• I3C Master in SDR mode
• Variable Working Frequencies (Open-Drain Mode: 1 kHz to 4 MHz; Push-Pull Mode: 100KHz to 12.5 MHz)
• Adjustable SCL Duty Cycle
• Amplitude Variation: 0.8V to 3.3V in steps of 10mV
• 5ns resolution
• Supports 7-Bit Slave Addressing
• Supports Common Command Code (CCC) transactions
• Supports flexible payload length’s IBI
• Supports Hot Plug
• Supports all Dynamic Address Assignments
• Supports legacy I2C Master, Software configurable I2C pull-up
• Error Injection such as parity errors
• USB Type-C port, Max. Current & Voltage: 500 mA @ 5 V
• Supports online upgrade
• API support for automation test in Python
• Physical Size: 114mm x 81mm x 27mm
• Operating Temperature From –20°C to +85°C

GUI Tool Overview

Easyi3C Tower Console GUI Tool is a graphical software debugging tool specifically designed to connect users and Easyi3C tower host adapter. It provides users with universal I3C/I2C read and write operations and standard I3C CCC command operations. Greatly facilitates users’ I3C/I2C protocol data transmission and read/write access to chip registers.

Easyi3C Tower Console GUI Tool

Electrical Characteristics
